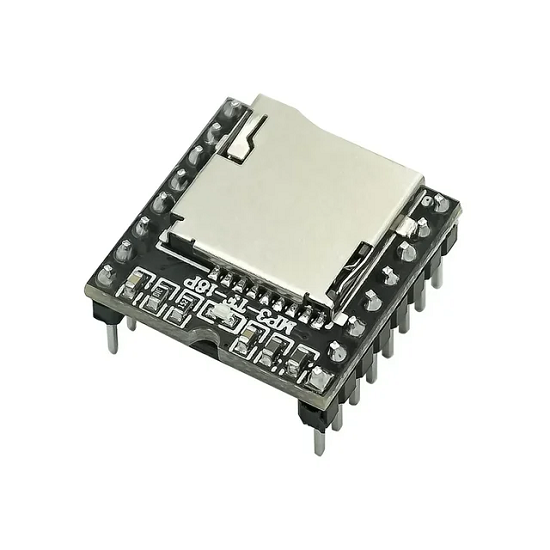

MP3-TF-16P is a MP3 player module that allows you to play MP3 audio files stored on a TF card (microSD card). This module is commonly used in various DIY electronics projects, such as sound effects for toys, audio feedback systems, embedded systems, and even custom audio players. It’s small, low-cost, and easy to integrate with microcontrollers like Arduino and Raspberry Pi for multimedia projects.
Supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB
Fully supports FAT16, FAT32 file system, maximum support 32G TF card, support U disk to 32G, 64M bytes of NORFLASH
Variety of control modes are availabel. IO control mode, serial mode, AD key control mode
The broadcast language spots feature, you can pause the background music being played. Advertising finished playing back background sound to continue playing
The audio data is sorted by folder, supports up to 100 folders, folders can assign every 255 Tracks
30 level adjustable volume, adjustable EQ 6
