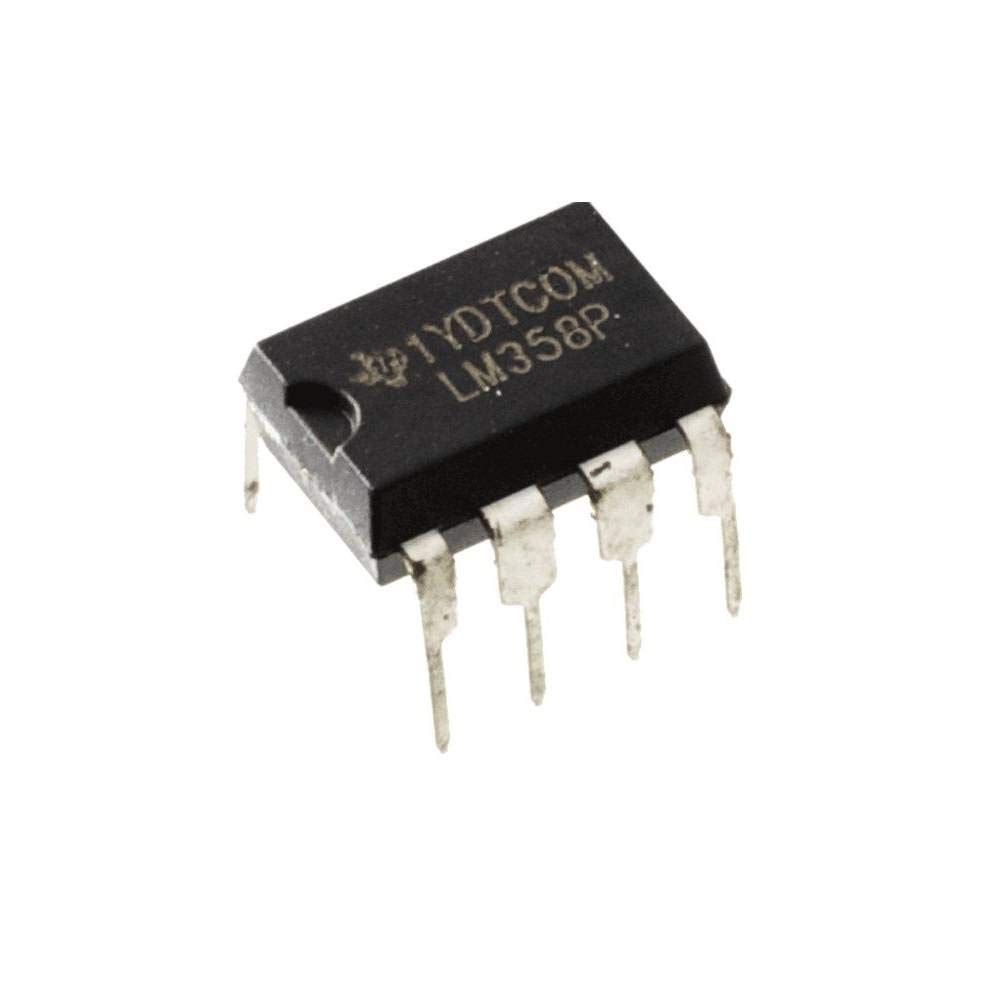

LM358N Operational Amplifier

Rwf 500.00

LM358N is a popular dual operational amplifier (op-amp) IC, often used in a variety of analog signal processing applications. It contains two independent, high-gain, internally frequency-compensated op-amps in a single package.

ADD TO CART
  • Availability In Stock
  • Shipping 1 day shipping.
  • Share on

Package Type: Dual in-line package (DIP-8)
Amplifier Configuration: Dual operational amplifier (two op-amps in a single package)
Power Supply: Can operate with a single power supply or dual power supply. The recommended supply voltage range is:
Single Supply Voltage: 3V to 32V
Dual Supply Voltage: ±1.5V to ±16V
Single Supply Operation: Typically from 0V to Vcc - 1.5V (when sourcing or sinking current).
Dual Supply Operation: Typically from V- + 1V to V+ - 1V (when sourcing or sinking current).
Common-Mode Input Voltage Range: The input voltage should be within the range of V- + 2V to V+ - 2V to ensure proper op-amp operation.
Output Current: Typically 20mA (sourcing or sinking).
Input Bias Current: Typically 250nA.
Input Offset Voltage: Typically 2mV, max 7mV.
Input Offset Current: Typically 5nA, max 20nA.
Supply Current: Typically 1.1mA per amplifier (total for both op-amps).
