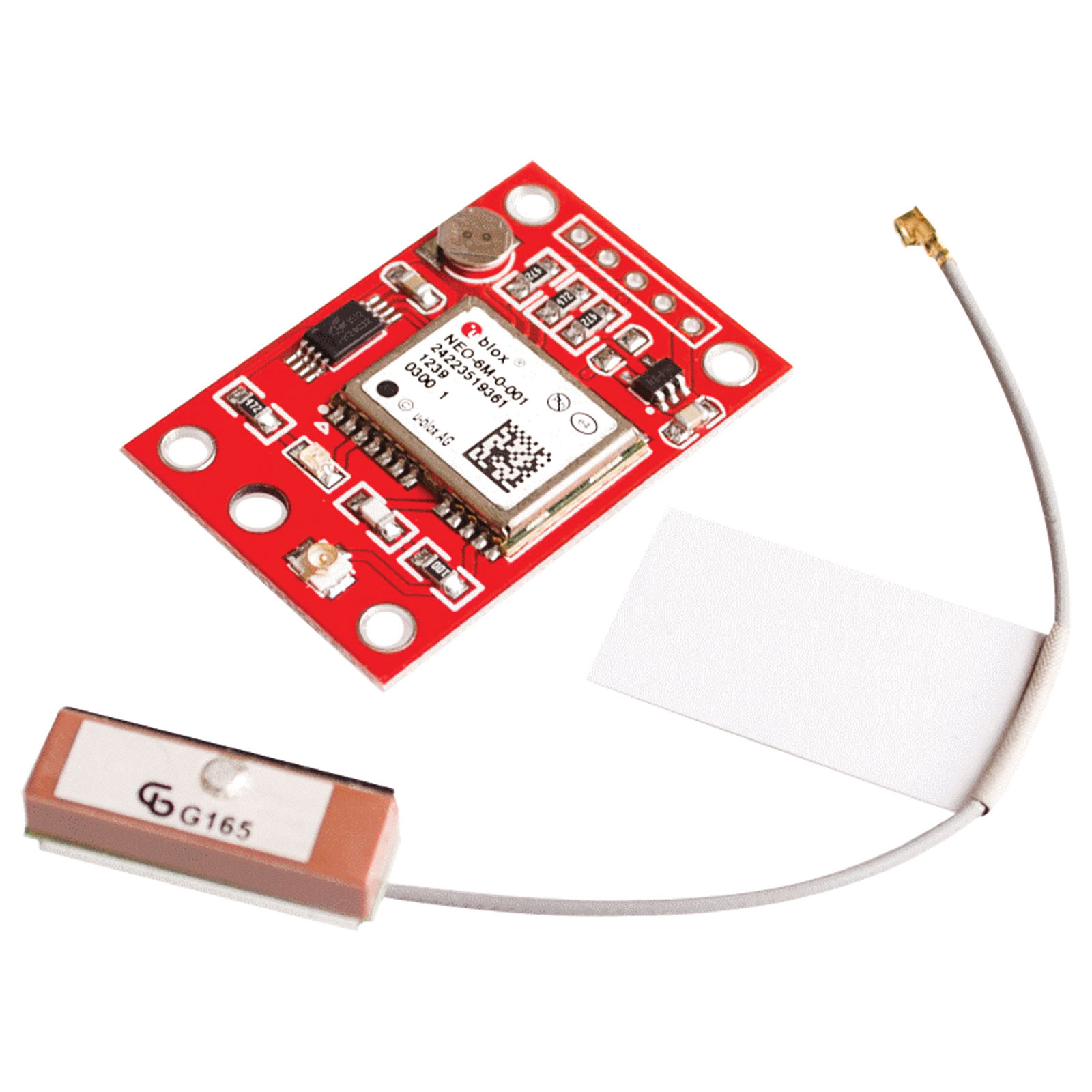

GY-NEO-6MV2 GPS module is a compact and cost-effective GPS receiver that utilizes the NEO-6M chip from u-blox. This module is commonly used in projects that require location tracking, navigation, or geolocation, and it's popular in applications such as drones, robotics, and remote sensing systems.
GPS Chip: u-blox NEO-6M
Receiver Type: 50-channel GPS receiver
Horizontal Accuracy: 2.5 meters (CEP)
Vertical Accuracy: 5 meters (CEP)
Time Accuracy: 1 microsecond
Signal Update Rate: 1 Hz (default), up to 5 Hz possible with adjustments
Operating Voltage: 3.3V to 5V (typically 5V for most applications)
Power Consumption:
Typical: 45 mA
Maximum: 100 mA
External GPS antenna with SMA or u.FL connector (depending on model)
Passive or active antenna (depending on the external antenna used)
Communication and Interface:
Interface:
UART (Serial Communication): TTL level (3.3V/5V logic)
Baud Rate: Default 9600 bps (adjustable from 9600 to 115200 bps)
Pins: TX, RX, VCC, GND, and optional PPS (Pulse Per Second) for accurate time measurements
Protocol: NMEA-0183 (used for transmitting GPS data)
