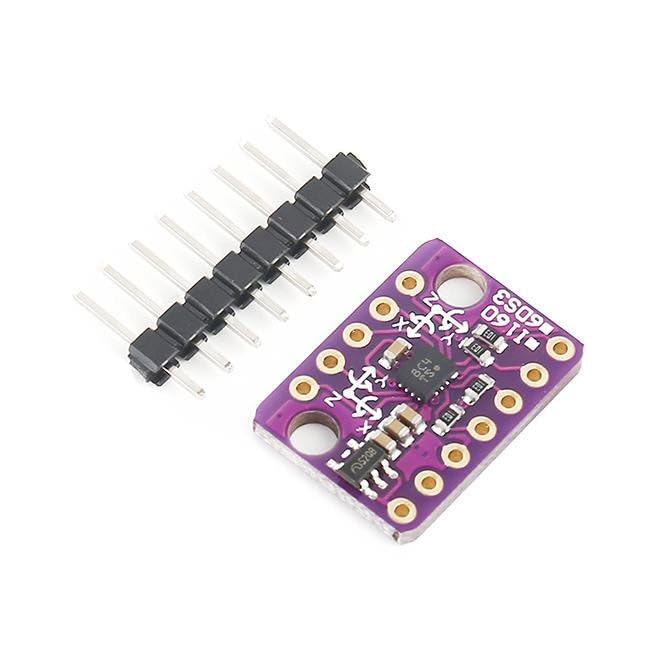

GY-BMI160 6DOF Angular Velocity Gyroscope Sensor (I²C/SPI) is a compact IMU (Inertial Measurement Unit) module based on Bosch’s BMI160 chip. It contains a 3-axis accelerometer and a 3-axis gyroscope, enabling 6 degree-of-freedom motion sensing.
GY-BMI160 6DOF Angular Velocity Gyroscope Sensor (I²C/SPI) is a compact IMU (Inertial Measurement Unit) module based on Bosch’s BMI160 chip. It contains a 3-axis accelerometer and a 3-axis gyroscope, enabling 6 degree-of-freedom motion sensing.Name: GY-BMI160 module (three-axis gyroscope + three-axis acceleration)
Use chip: BMI160
Power supply: 3-5V
Communication method: standard IIC/SPI communication protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyroscope range: ±125 ±250 ±500 ±1000 ±2000 °/s
Acceleration range: ±2±4±8±16g
Pin pitch 2.54mm
Module size 13mm*18mm
