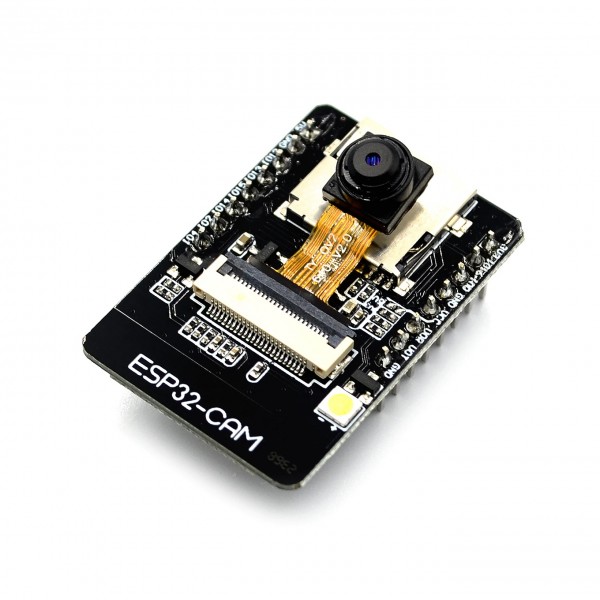

The ESP32-CAM is a WIFI + Bluetooth dual-mode development board based on the ESP32 microcontroller. It can be used as a standard ESP32 development board but also includes two additional features of an SVGA camera LED flash, and TF card socket.
Specifications
IO Port: 9
Power Supply: 5V 2A
WiFi: 820.11 b/g/n/e/i
SPI Flash: Default 32Mbit
Spectrum Range: 2412-2484MHZ
Serial Port Rate: Default 115200 bps
RAM: Internal 520KB + External 4M PSRAM
Antenna Form: Onboard PCB antenna, gain 2dBi
Bluetooth: Bluetooth 4.3 BR/EDR and BLE standard
Image Output Format: JPEG (Only OV2640 support), BMP, GRAYSCALE
Features
Support TF card.(Max 4G)
Support image WiFi upload.
Support multiple sleep modes.
Embedded Lwip and FreeRTOS.
Support secondary development.
Support STA/AP/STA+AP working mode.
Built-in 520 KB SRAM, external 4M PSRAM.
Support OV2640 and OV7670 cameras, built-in flash.
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
Support Smart Config/AirKiss one-click distribution network.
