Buck converter is a type of DC-DC (Direct Current to Direct Current) power converter that is designed to step down or reduce the voltage from a higher value to a lower value while maintaining the power. In other words, it efficiently converts a higher input voltage to a lower output voltage.
Input Voltage: The buck converter takes in a higher voltage (DC).
Switching: The converter uses a switch (typically a transistor) to rapidly turn the input voltage on and off.
Inductor and Capacitor: An inductor and capacitor are used to smooth out the voltage fluctuations and store energy, ensuring the output is a steady DC voltage.
Output Voltage: The final output is a lower DC voltage, which is regulated based on the converter's design and control circuitry.

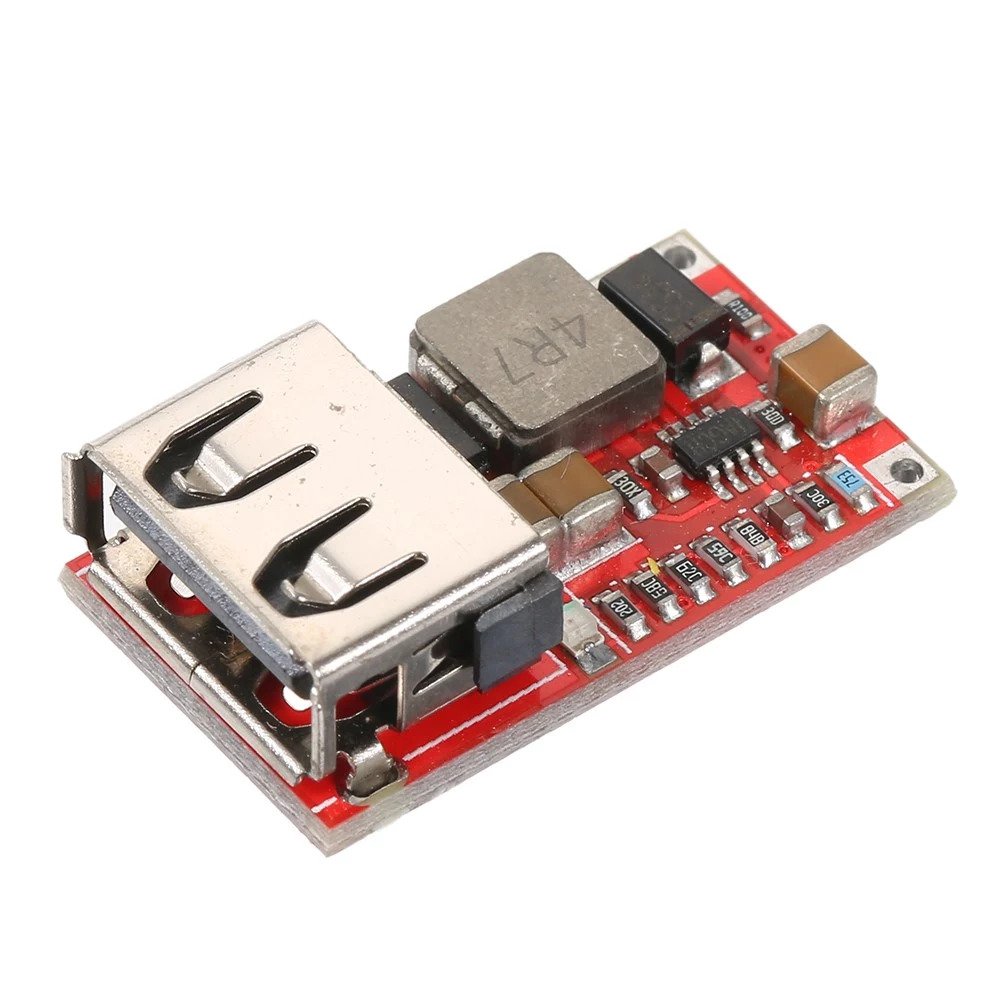

Module nature: non-isolated step-down module (BUCK) synchronous rectification
Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: Maximum 3A (please pay attention to heat dissipation at full load), no special heat dissipation is required for the actual test input 12V output within 2A.
Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) (tested value after shorting reverse connection protection and fuse)
Switching frequency: 500KHz
Output ripple: about 10mV (12V to 5V3A) 20M bandwidth
Output indication: the output voltage indicator is red
Working temperature: industrial grade (-40℃ to +85℃) (the higher the ambient temperature, the smaller the output power)
Output overvoltage protection: Yes, input 1.5A fuse, output 5V, 300W TVS tube clamp protection.
Full load temperature rise: 30℃
Quiescent current: 0.85 mA
Load regulation rate: ±1%
Voltage adjustment rate: ±0.5%
Dynamic response speed: 5% 200uS
Output short-circuit protection: Yes, please do not short-circuit for a long time
Input reverse connection protection: Yes, input has reverse connection protection diode
Connection method: welding
Input method: welding
Output mode: short head and borderles
