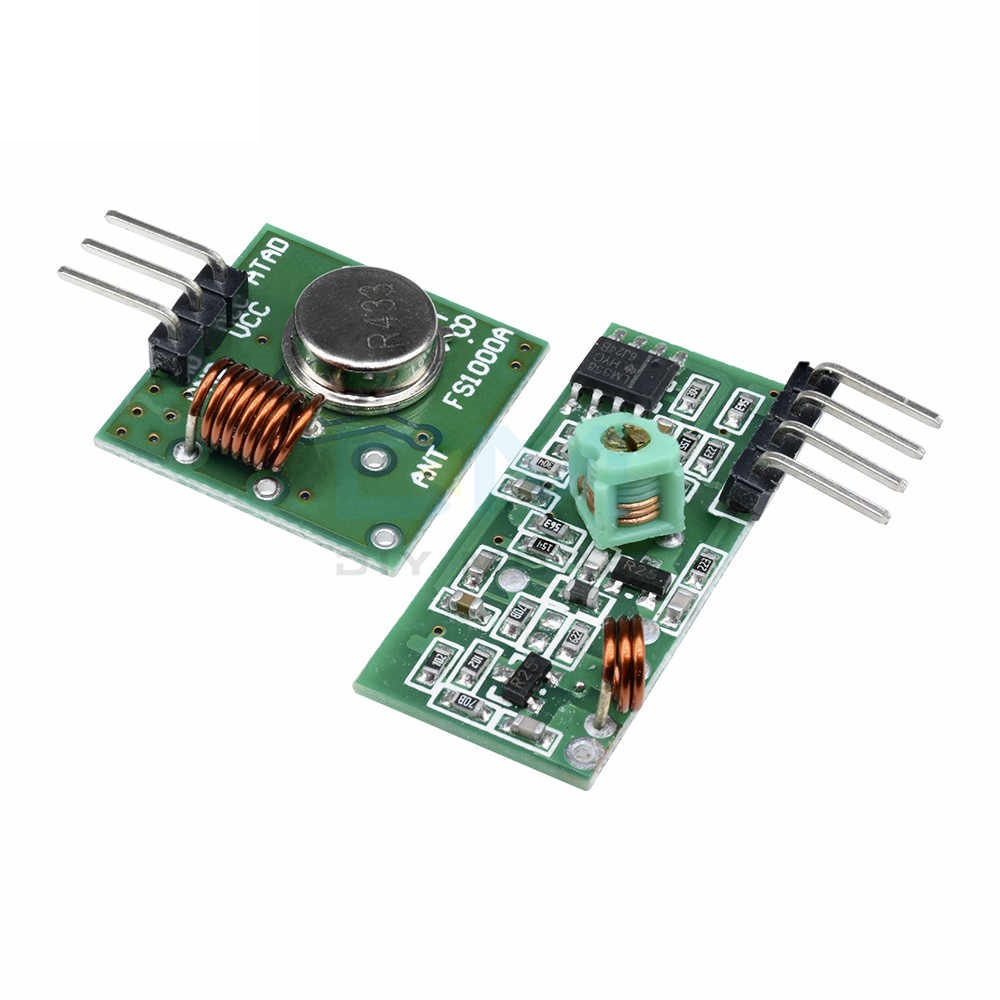

433 MHz Wireless Receiving and Transmitting Module is a commonly used set of radio frequency (RF) modules that allow wireless communication between two devices. These modules typically operate in the 433 MHz frequency band, which is a popular frequency used for low-power, short-range communication. Here's a breakdown of the key components
433 MHz Transmitter (TX): This is the module that sends out a radio signal at 433 MHz. It takes input data and transmits it wirelessly over short distances. It is typically connected to a microcontroller (like an Arduino or Raspberry Pi) to send data.
433 MHz Receiver (RX): This module receives signals transmitted at 433 MHz. It takes the received data and sends it to the connected microcontroller for further processing or action.
Receiver module parameters
Product Model: MX-RM-5V
Operating voltage : DC5V quiescent current: 4MA
Receiving frequency: 433.92MHZ
Receiver sensitivity: - 105DB
Size : 30 * 14 * 7mm external antenna: 32CM single core wire wound into a spiral
Technical parameters of the transmitter head
Product Model: MX-FS
Launch distance: 20 -200 meters (different voltage, different results) Operating voltage: 3.5-12V Dimensions: 19 * 19mm
Ways of working: AM transfer rate: 4KB / S transmit power: 10mW
Transmitting frequency: 433M
An external antenna: 25cm ordinary multi-core or single-core line
Pinout from left → right: ( DATA ; VCC ; GND )
