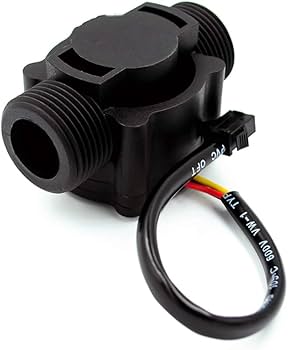

YF-S201 is a water flow sensor that operates on the Hall effect principle, commonly used to measure water flow rates in various applications. It typically comes with a G1/2" (1/2 inch) thread size, which might be referred to as "1/2 YF-S201.
The sensor has three pins: Power (Red), Ground (Black), and Signal Output (Yellow). When water flows through the sensor, the internal rotor spins, and the Hall effect sensor outputs a pulse signal corresponding to the flow rate. By counting these pulses, you can determine the amount of water passing through the sensor.
Operating Voltage: 4.5V to 18V DC
Output Type: 5V TTL
Maximum Current Draw: 15mA at 5V
Flow Rate Range: 1 to 30 liters per minute
Accuracy: ±10%
Pulses per Liter: 450
Maximum Water Pressure: 2.0 MPa
Flow Rate Pulse Characteristics: Frequency (Hz) = 7.5 * Flow Rate (L/min)
