Type: General-purpose rectifier diode
Maximum Recurrent Peak Reverse Voltage (V_RRM): 1000 V
Maximum RMS Voltage (V_RMS): 700 V
Maximum DC Blocking Voltage (V_DC): 1000 V
Forward Voltage (V_f): Typically 0.7 V at 1 A of forward current.
Average Forward Current (I_F(av)): 1 A (continuous current)
Surge Current (I_FSM): 30 A (for 8.3 ms half-sine pulse)
Maximum Reverse Leakage Current (I_R): 5 µA at 1000 V
Capacitance (C): 25 pF at 1 MHz
Junction Temperature (T_j): -55°C to +150°C
Storage Temperature (T_stg): -55°C to +150°C

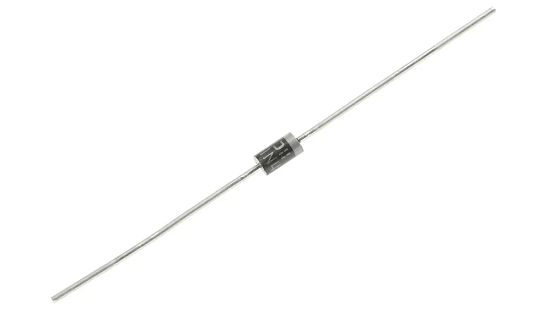

Package Type: DO-41
Key Features:
High Voltage: With a peak reverse voltage of 1000 V, it can be used for high-voltage rectification applications.
Reliability: Due to its construction, the 1N4007 is known for its robustness and durability in various electronic devices.
Cost-effective: It is widely available and affordable, making it a go-to option for many common rectification applications.
The 1N4007 is commonly used in power supplies, motor drives, and other circuits where rectification or voltage protection is required.
