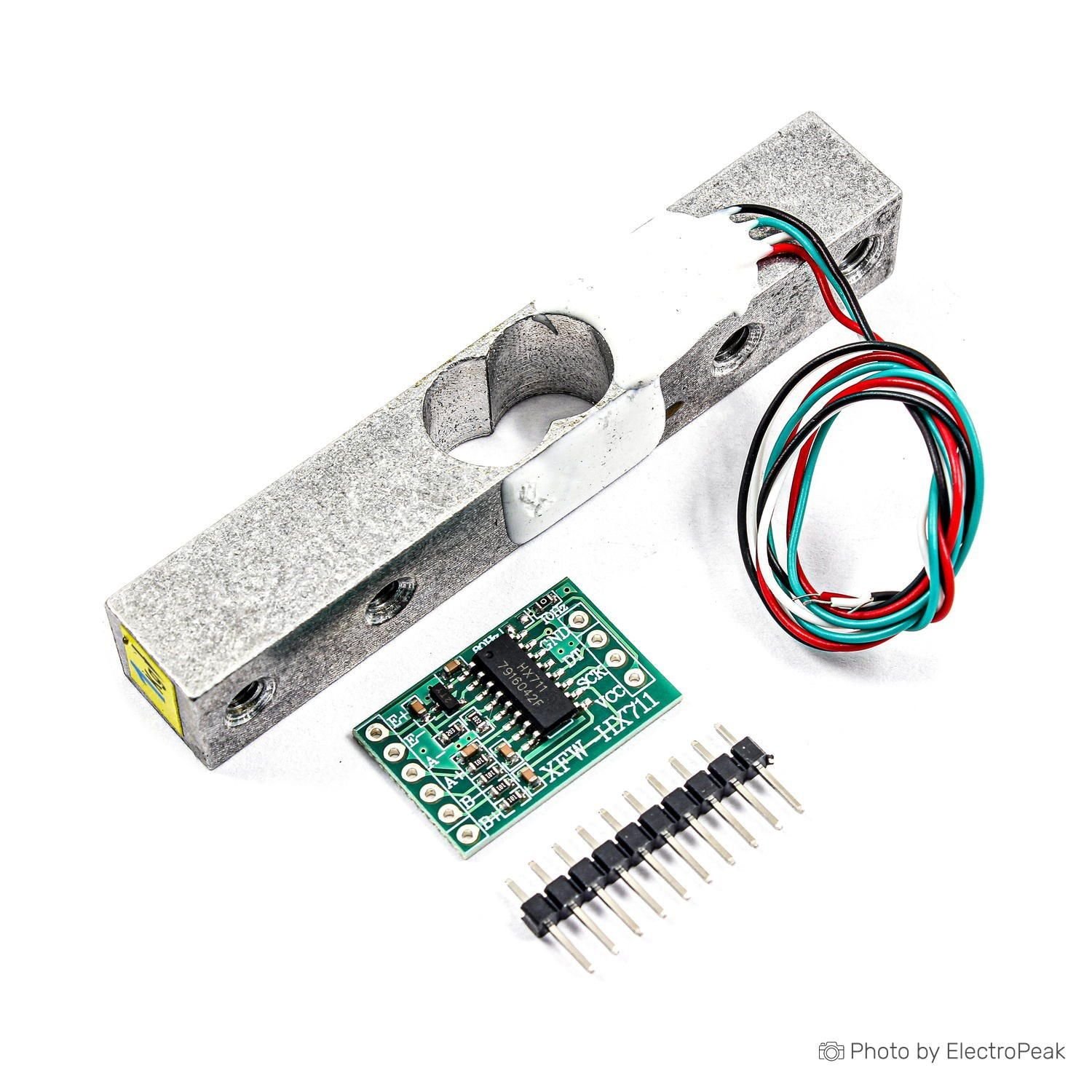

Weight sensor is a type of sensor that measures the weight or mass of an object by detecting the force of gravity acting on it. The sensor typically uses a load cell or a similar technology to convert the mechanical force (weight) into an electrical signal, which can be processed and displayed.
Size: 81×13.5×13.5mm
Technical Parameters
Range: 1Kg
Output sensitivity: 1.0±0.1mV/V
Zero output: ±0.1mV/V
Repeatability: 0.05% F.S
Creep: 0.05% F.S/3min
Nonlinear: 0.05% F.S
Lag: 0.05% F.S
Output impedance: 1000±5% ohms
Zero temperature drift: 0.05% F.S/10°C
Temperature sensitivity drift: 0.05% F.S/10°C
Lead Cable
Motivation is positive: red
Incentive negative: green
Signal is positive: black
signal Negative : white
