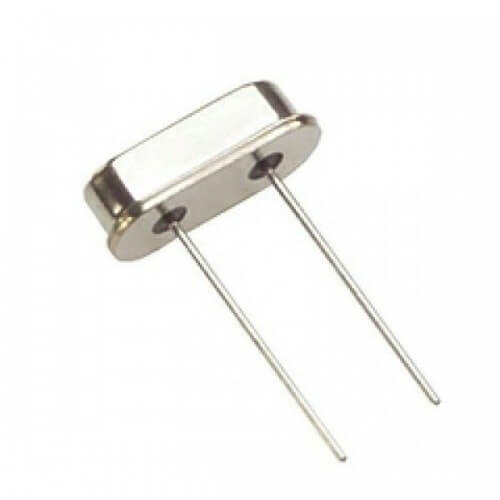

16 MHz crystal oscillator is an electronic component that generates a stable clock signal at a frequency of 16 million cycles per second (16 MHz). It's commonly used in microcontrollers and digital circuits to provide a precise timing reference.
Parameter:Typical Value / Range
Frequency:16 MHz
Frequency Tolerance:±10 to ±50 ppm (parts per million)
Frequency Stability:±10 to ±50 ppm (over temp range)
Load Capacitance:18 pF (commonly 12–20 pF)
Operating Temperature:-40°C to +85°C (sometimes -20°C to +70°C)
Aging:±3 to ±5 ppm/year
Shunt Capacitance:5–7 pF typical
Drive Level:100 μW typical (max ~500 μW)
Package Type:HC-49/U (through-hole), SMD (e.g., SMD3225)
Equivalent Series Resistance (ESR):50–100 ohms typical
