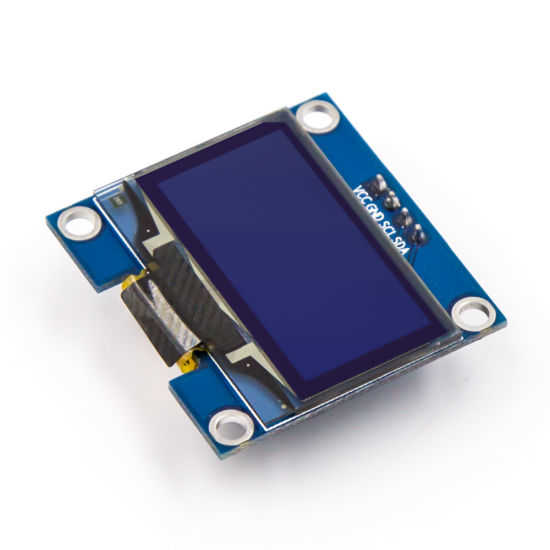

1.3-inch Blue OLED display is a small, high-resolution, and energy-efficient display often used in electronics projects where a clear, crisp display is required in a compact form factor. Like other OLED (Organic Light Emitting Diode) displays, it offers vivid colors, deep blacks, and a wide viewing angle.
Resolution: 128 x 64
IC: SH1106
PCB Size: 35.4 x 33.5 mm
Active Area: 29.42 x 14.7 mm
Interface Type: SPI / I2C (Address: 0x02, need to change the resistor )
Display Color: Blue or White (Optional)
Operating Voltage: 3.3V - 5.0V
Logic Voltage: 3.3V
Pixel Pitch: 0.23 x 0.23 (mm)
Pixel Size: 0.21 x 0.21 (mm)
Operating Current: 20ma
Operating Temperature: -40~70℃
Dimensions: 35.4 X 33.5mm
Weight: 5.7g
